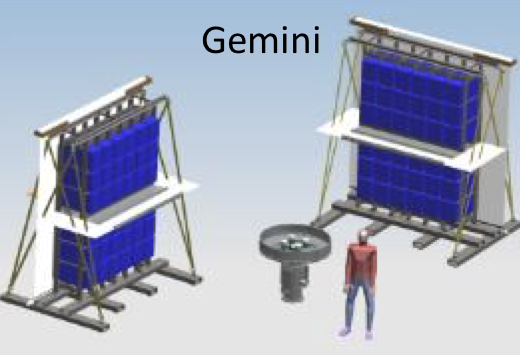

Gemini

• Anode (R)76.2mm
• Anode (L)596.9mm
• Insulator (R)77mm
• Insulator (L)127mm
• Cathode (R)101.6mm
• Capacitance432nF
• Induction29.7nH
• Resist2.5mΩ
• Voltage40.13kV
• Bank Energie347.85J
• Deuterium Pressure5.7torr

LPP Fusion

• Anode (R)28.0mm
• Anode (L)140.0mm
• Insulator (R)35.3mm
• Insulator (L)27.0mm
• Cathode (R)50.0mm
• Capacitance75.2nF
• Induction35.0nH
• Resist5.6mΩ
• Voltage40.1kV
• Bank Energie60.46J
• Deuterium Pressure12.2torr

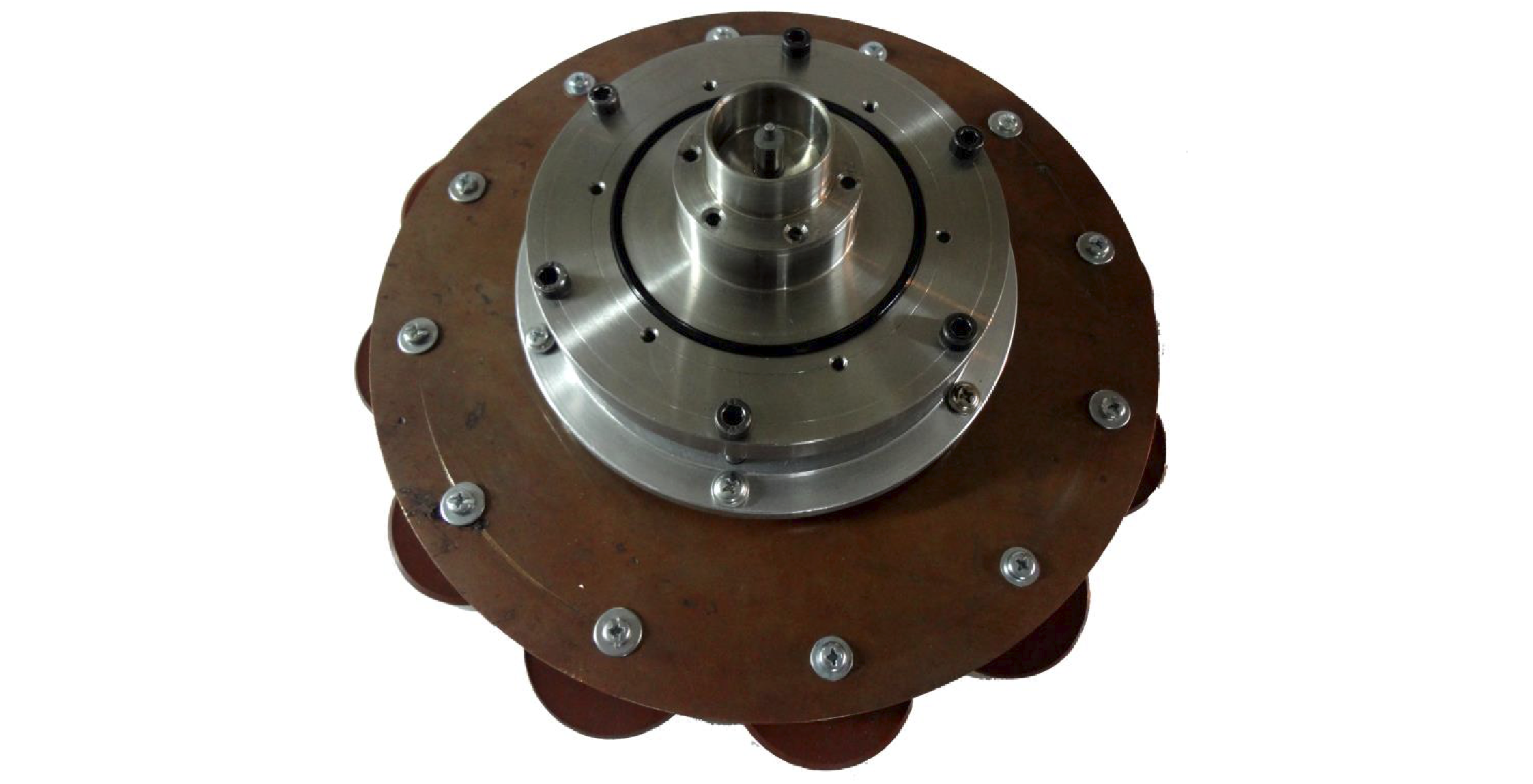

Mini

• Anode (R)1.25mm
• Anode (L)3.1mm
• Insulator (R)4.0mm
• Insulator (L)13.0mm
• Cathode (R)7.2mm
• Capacitance84nF
• Induction45nH
• Resist??mΩ
• Voltage8.5kV
• Bank Energie2.5-3.5J
• Argon Pressure0.9torr

OneSys

• Anode (R)50.8mm
• Anode (L)393.7mm
• Insulator (R)50.9mm
• Insulator (L)108.0mm
• Cathode (R)76.2mm
• Capacitance216nF
• Induction46.0nH
• Resist2.0mΩ
• Voltage35kV
• Bank Energie??
• Pressure6.8torr
